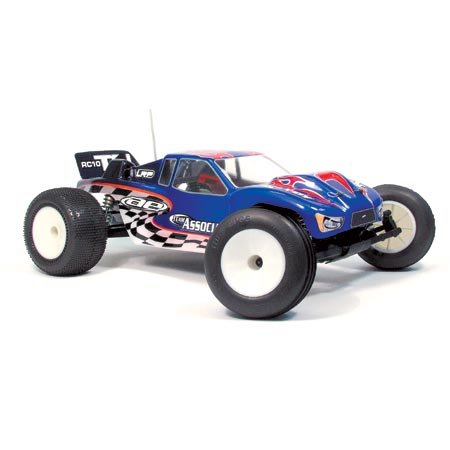

RC10T4 Team Truck
The T4 truck borrows the distinctive forward-swept front end and rear-mounted shock configuration featured on the RC10B4 buggy, optimized with the new co-planar steering geometry. This new...read more
$.
Average Customer Rating
0 out of 5 |
Product Features
- Angled bellcrank steering
- Front shocks are mounted behind the shock towers
- All four suspension arms utilize a captured hinge pin design that uses no e-clips
- The forward-swept front end design provides maximum front end ground clearance
- The 2.6:1 laydown transmission now uses the higher torque capacity differential from the RC10GT
Product Description
The T4 truck borrows the distinctive forward-swept front end and rear-mounted shock configuration featured on the RC10B4 buggy, optimized with the new co-planar steering geometry. This new suspension design provides maximum front-end clearance and minimizes bump-steer while maintaining desired Ackermann angles. Trailing front axle or optional inline steering blocks can be used to adjust steering response. The suspension arm design features a “captured” hinge pin design so that no E-clips are used. The T4 also features a heavy-duty design front hinge-pin brace and bumper for increased durability.
The transmission has also been optimized into an ultra-compact package, and now uses the same 2.6:1 higher torque-capacity differential as the RC10GT. A double-sided slipper assembly (first prototyped by Team Associated in 1989) has been designed with higher torque capacity, easier assembly, and lower rotating mass than comparable double-sided slippers. This provides a finer adjustment range and more efficient slipper operation.
The T4 chassis provides a super-low center of gravity by lowering the motor, battery, and shock mounting positions, enabling Associated’s R&D team to design a sleeker, more realistic low-profile body, greatly reducing the large, unaerodynamic humps over the rear shocks as seen on older-design trucks. The T4 also comes equipped with strong, dish-style wheels and high-traction Pro-Line tires.
The RC10T4 - Radio Control Car Action Reader's Choice 2004 winner for Electric Truck in 2005!
